For your convenience, you can either watch the installation video below or follow the detailed step-by-step written instructions beneath the video. Both options will guide you through the process to ensure a smooth installation of your ShadeCort blinds.
What's in the box?
Everything you need for the installation is provided in the box—no extra tools or materials are required.
Four Steps to Assemble Your ShadeCort
Step 1: Lay Out the Side Frames
1. Make sure to take everything out of the box delivered!
2. Follow the instructions on the paper and be sure to properly lay out and position the frame on the floor as instructed.

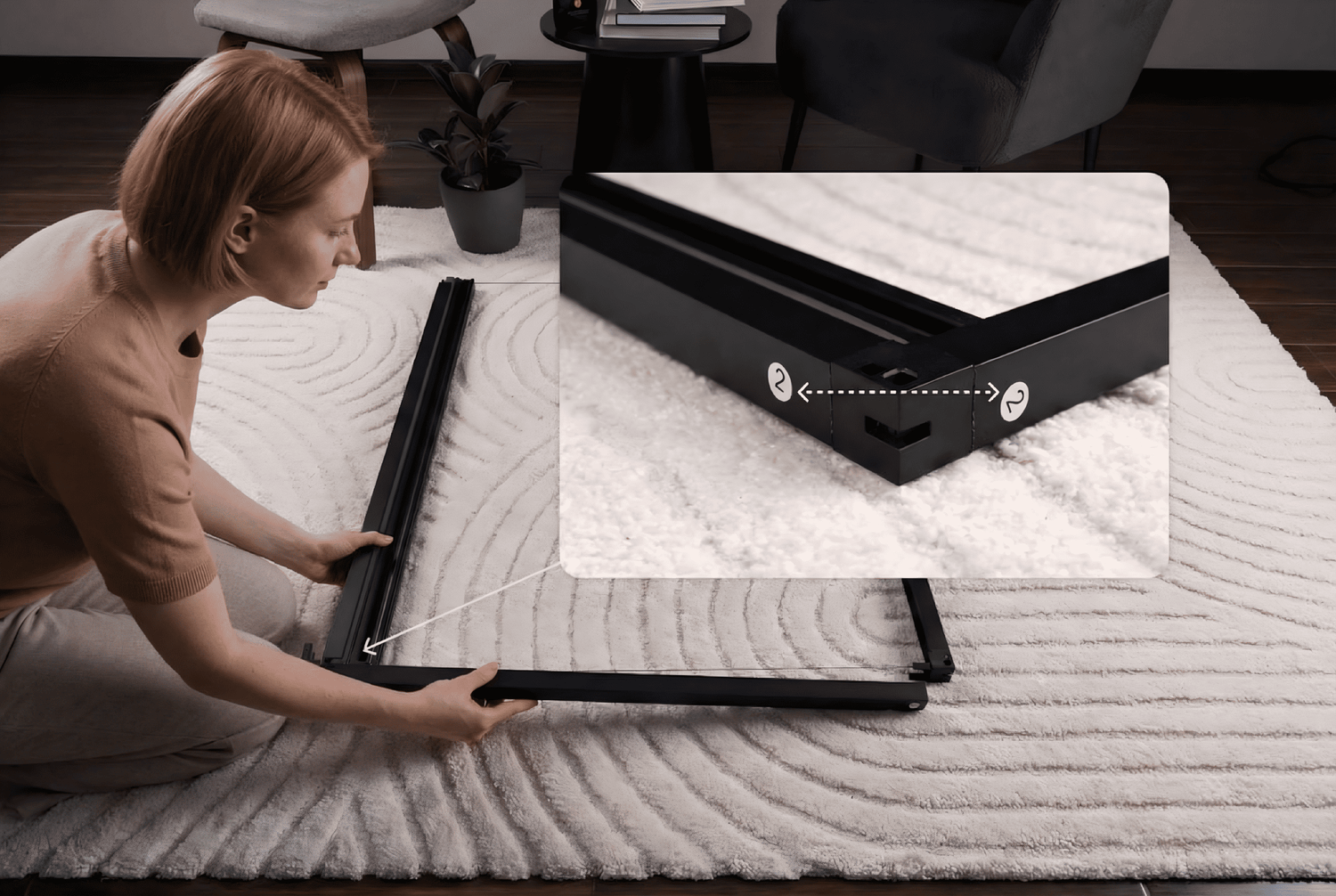

Step 2: Position the Top and Bottom Frames
Align the top and bottom frames parallel to each other, ensuring the numbered labels on the adjoining ends match
Step 3: Connect the Frames
Assemble the full frame by connecting the fabric and side frames to the top and bottom frames.
Once assembled, close the blinds to verify that the latch engages securely.
Step 4: Tighten thetension strings
Now on each side of the frame begin to tighten the tension strings to ensure your frame stays connected securely.
Six Steps to Install Your ShadeCort

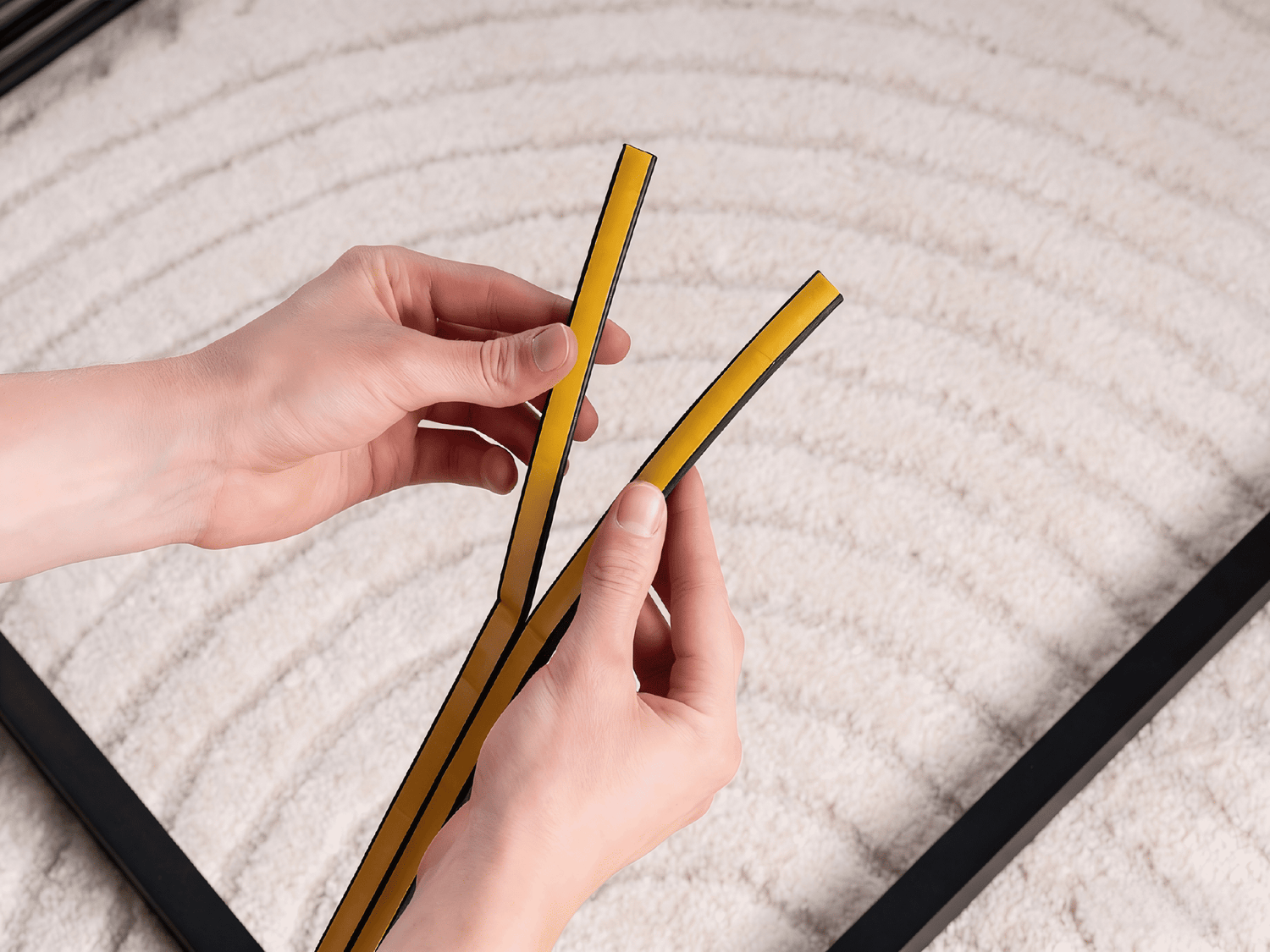

Step 1: Split the Weather Strip
Split the provided weather strip into two equal parts.

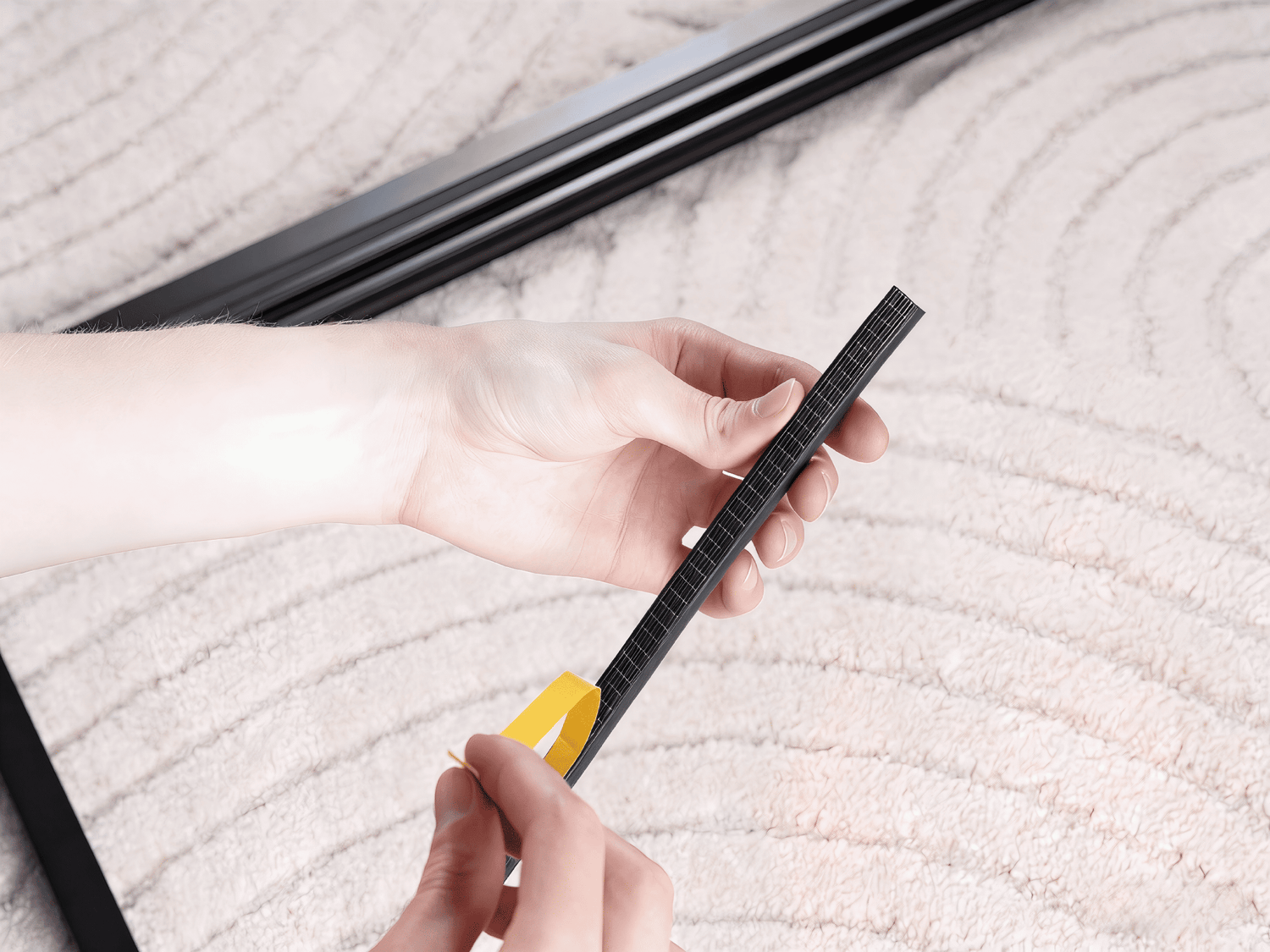

Step 2: Remove the Backing From the Weather Strip
Peel off the protective backing from the weather strip to expose the sticky side.

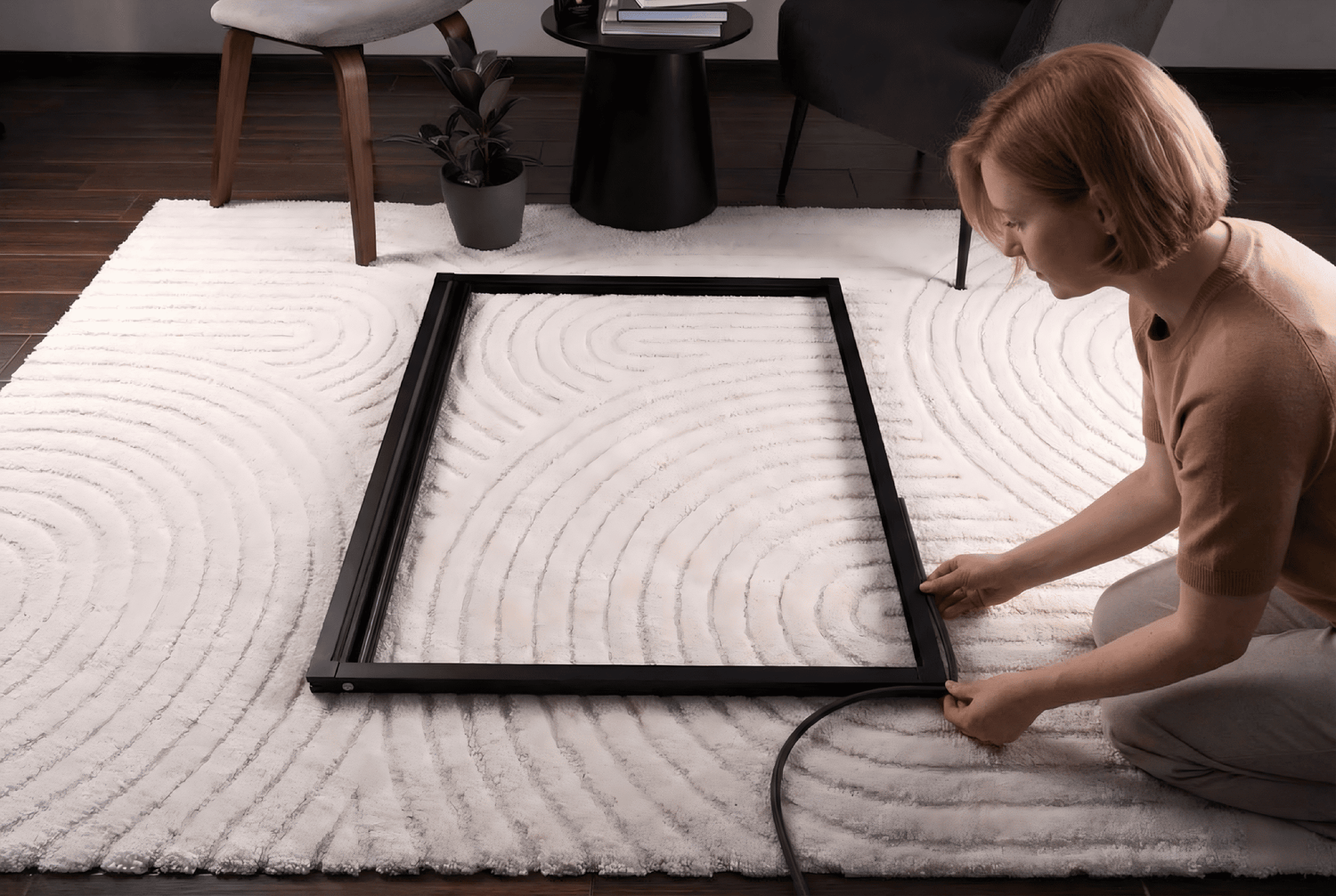

Step 3: Apply the Weather Strip
Apply the weather strip to all 4 sides of your ShadeCort. Ensure all sides are properly covered without any gaps.
Note: Make sure the weather strip is applied as high on the frame as possible.

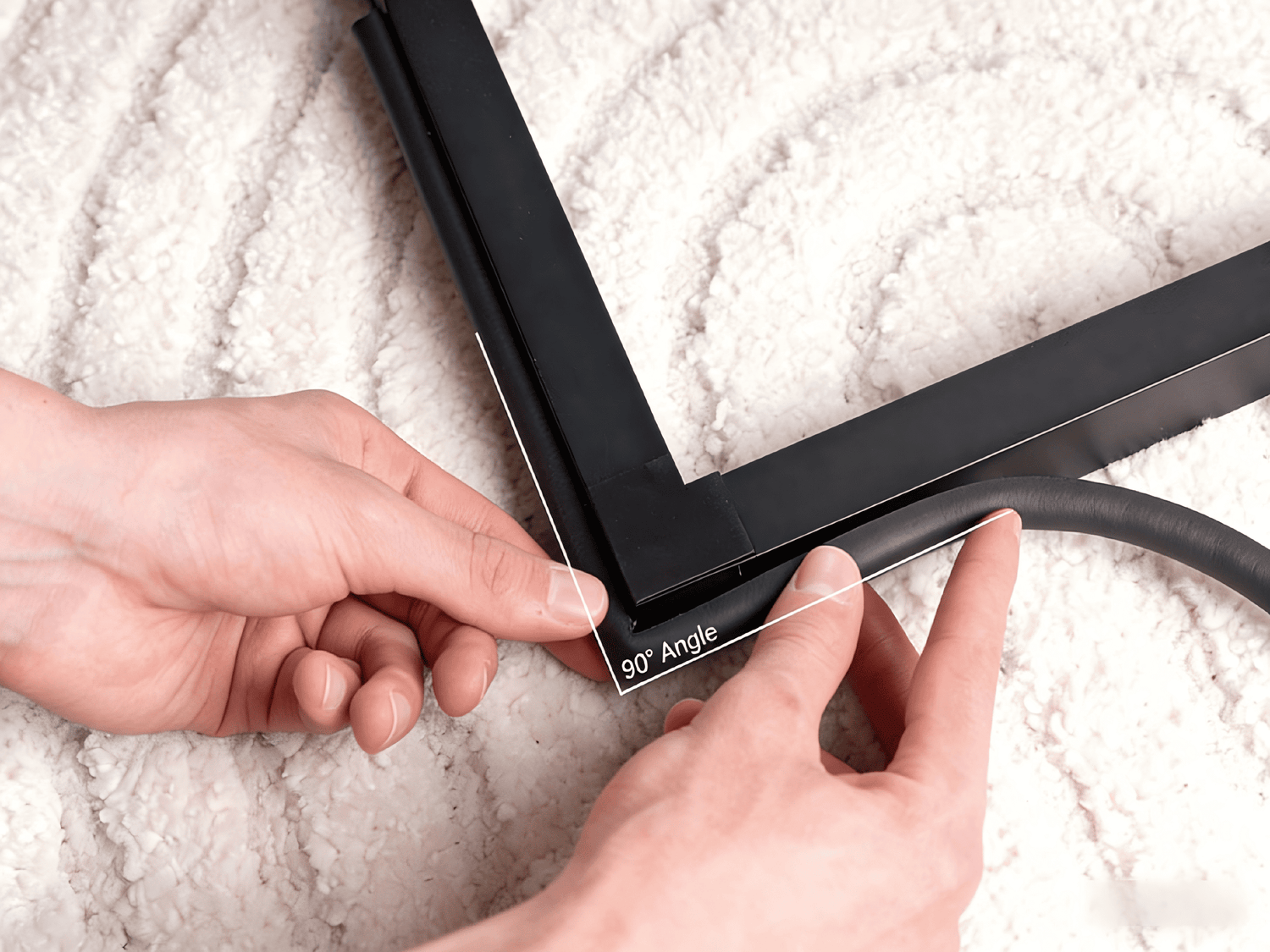

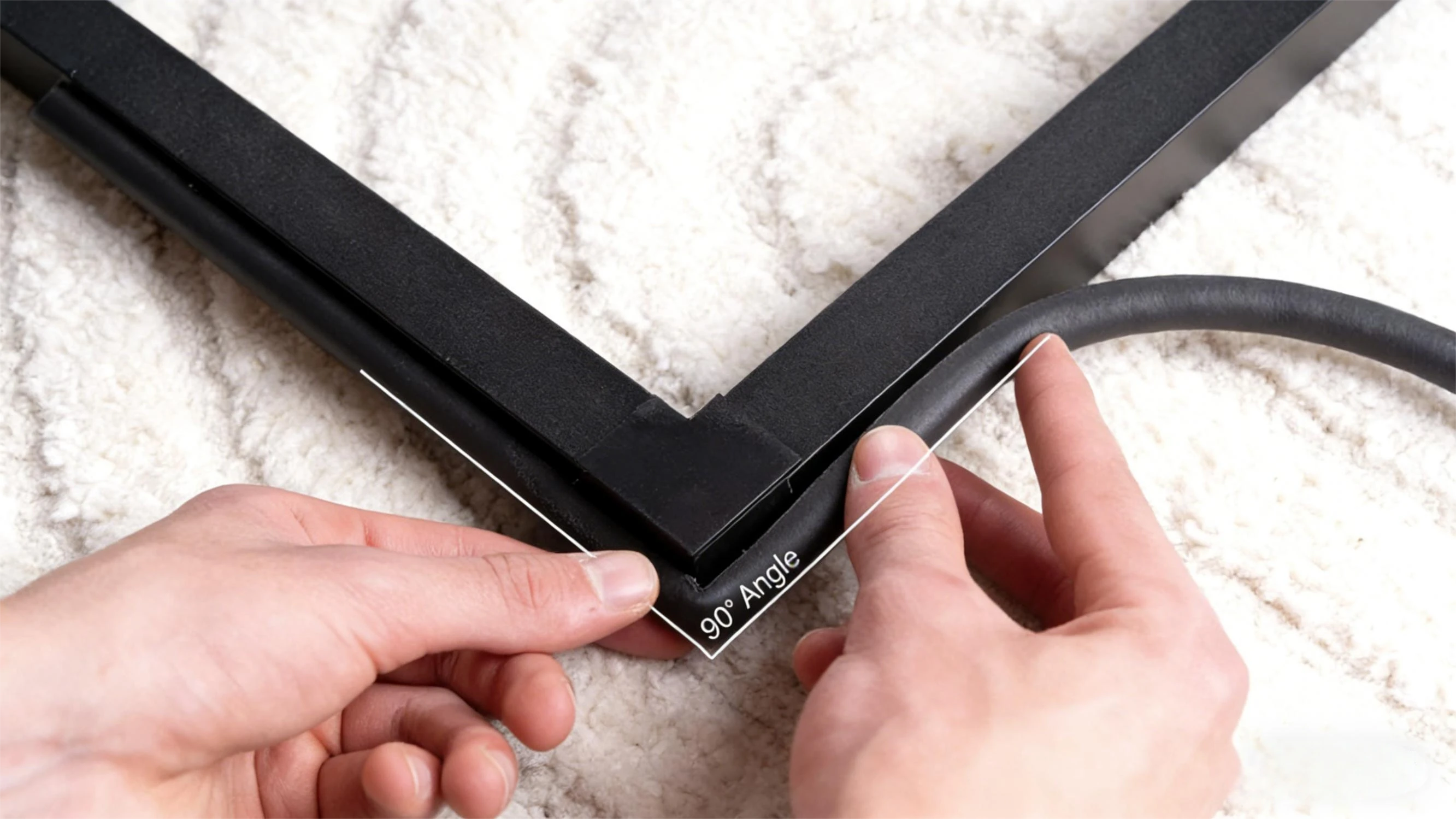

Form the Corners
When applying the weather strip, do not stretch it across corners. Keep it relaxed and fully seated, forming a clean 90-degree angle to match the frame. If pulled too tightly, it may create small gaps in the corners where light can leak through.

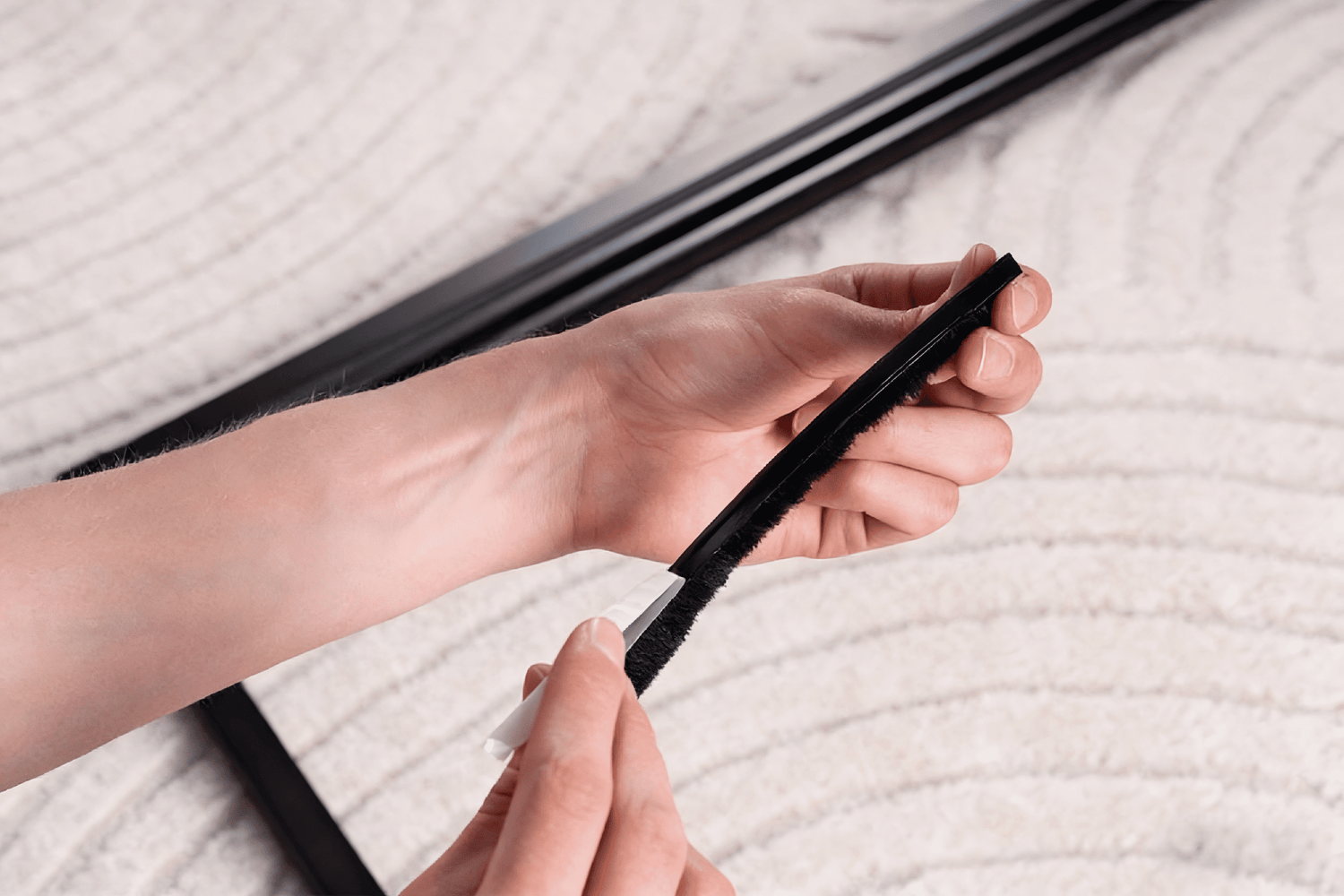

Step 4: Peel Off the Brush Strip Backing
Peel off the protective backing from the brush strip to expose the adhesive surface.

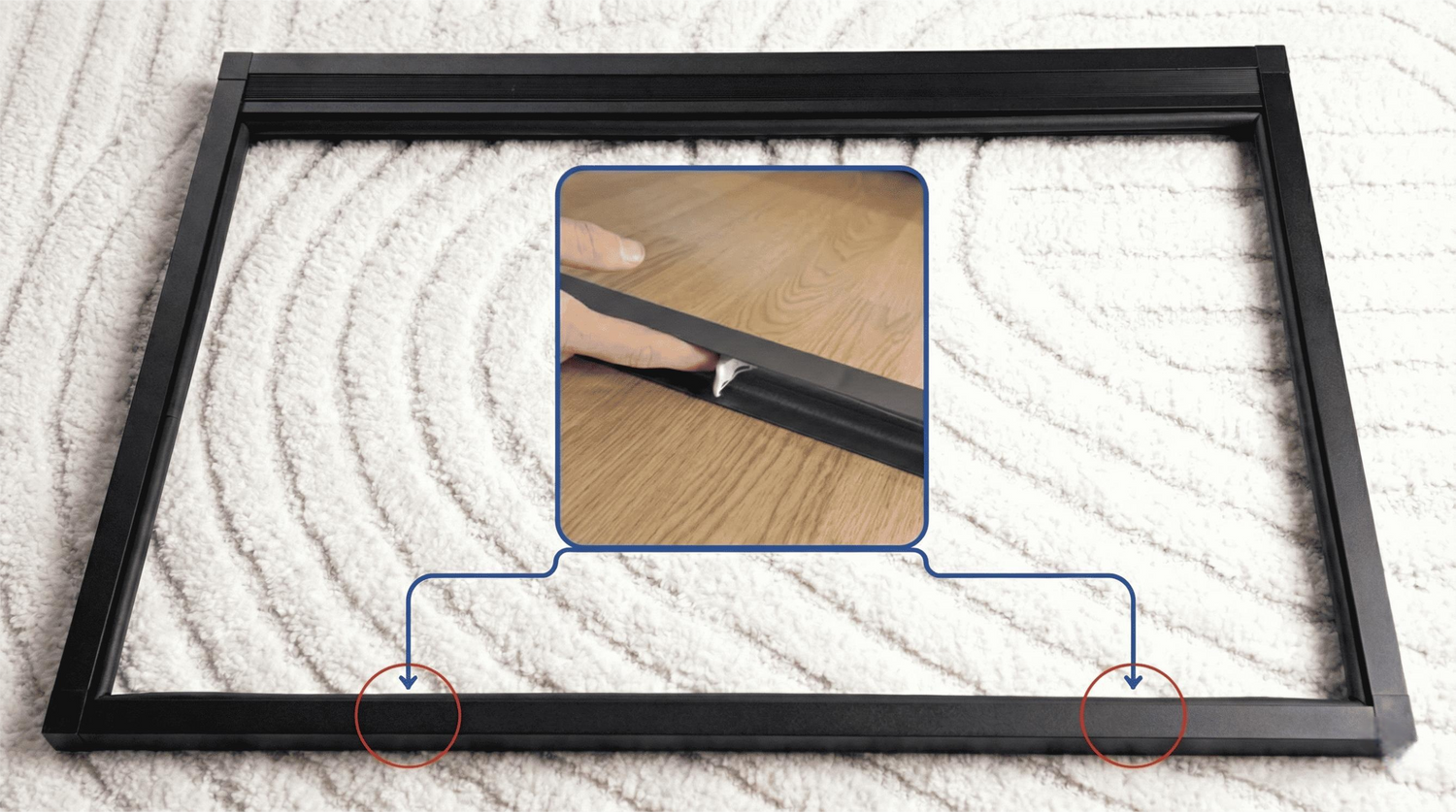

Step 5:Install the Brush Strip
Carefully apply the brush strip along all four inner sides of the frame, positioning it directly next to the weather seal for optimal blackout performance.
Important Notes
Note 1:
Trim the brush strip neatly at each corner to ensure a clean and seamless fit. For the best finish, align each strip carefully so the corners meet evenly without overlapping.
Note 2:
Position the brush strip as close to the inner edge of the frame as possible, directly behind the weather seal. Proper placement helps improve light sealing and creates a cleaner finished appearance after installation.

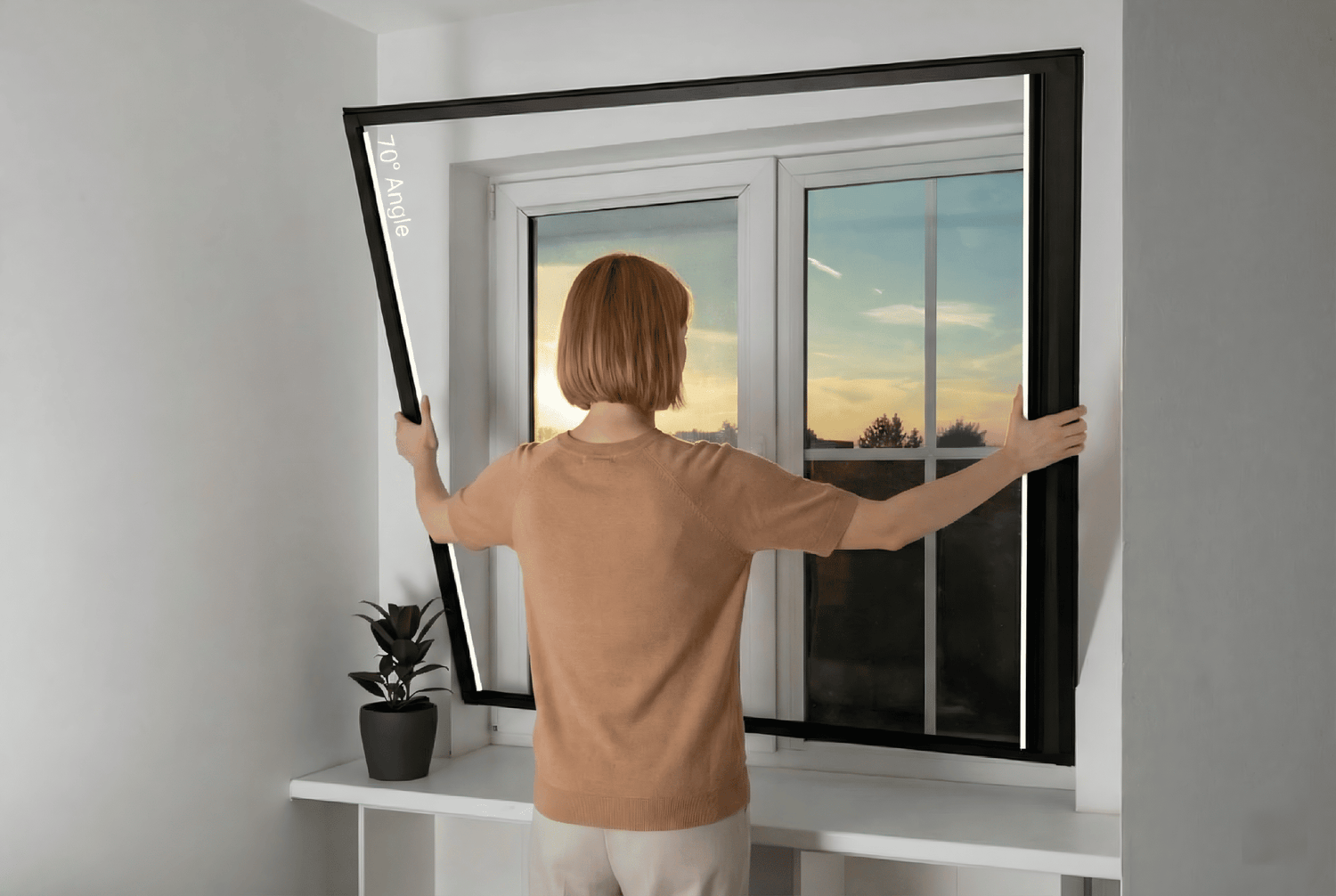

Step 6: Insert and Test ShadeCort
Insert the blinds into your window recess at a 70-degree angle. Start by guiding the bottom of the blinds into place, pushing it firmly to the bottom first, then finish by pushing the top of the blinds into position. Once inserted, test the blinds by opening and closing them.
Frequently Asked Questions
ShadeCort features a unique track system that eliminates gaps between the blinds and the window frame to ensure total darkness. The dual-layered honeycomb fabric combines non-woven polyester with a reflective thermal barrier to block light, insulate against heat, and reduce noise.
ShadeCort is designed to fit most standard window types, but there are a few considerations.
ShadeCort won’t fit windows that are not square. Additionally, the blinds require at least 1.18 inches of unobstructed recess space for proper installation. If your window doesn’t meet these criteria, ShadeCort may not be suitable for you.
Here’s a list of compatible and incompatible window types to help you determine if our product is the right fit for your home:
✅ Compatible window types (ShadeCort):
- European Windows
- Tilt-and-Turn Windows
- Fixed Windows
- Sliding Windows
- Casement Windows
- Hung Windows
- Sash Windows
- Bay Windows
- Awning Windows
- Skylights
❌ Incompatible window types (ShadeCort):
- Arched windows
ShadeCort is low-maintenance. The non-woven polyester fabric resists dust and stains, requiring only occasional cleaning with a damp cloth. No special cleaners or treatments are necessary.
The interior of your ShadeCort blinds matches your fabric choice, while the exterior is always Quartz to reflect light. For example, if you select Graphite, the interior side will be Graphite, but the exterior will remain Quartz. This design ensures a uniform appearance from the outside and is intended to reflect light.
To ensure correct measurements, please read our Measuring Guide. It’s important that your measurements are accurate and precise, as they are crucial for your ShadeCort blinds to fit properly. Incorrect measurements will result in your ShadeCort blinds not fitting your windows.
To install your ShadeCort blinds, follow our step-by-step instructions in our Installation Guide.
